B00DP1

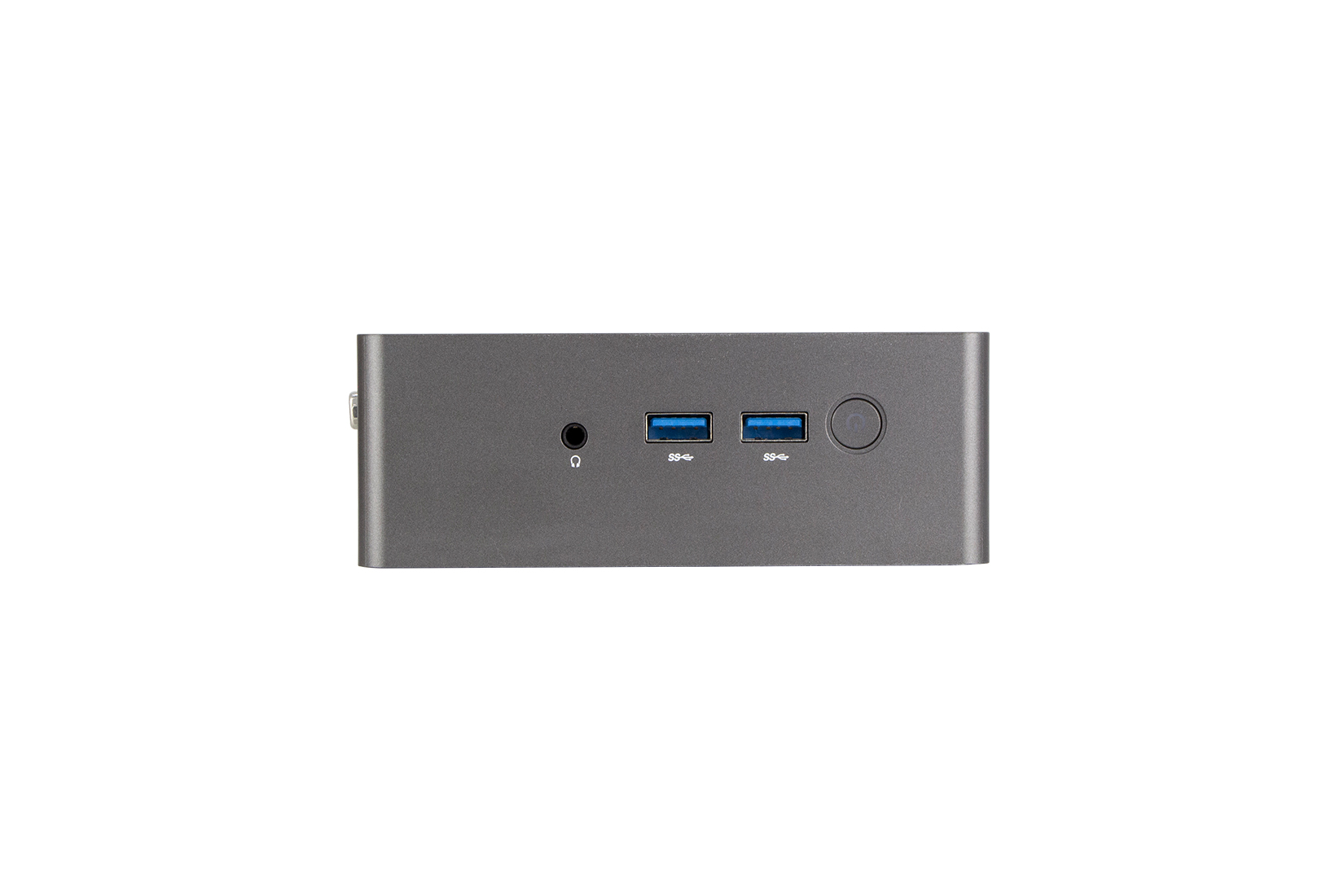

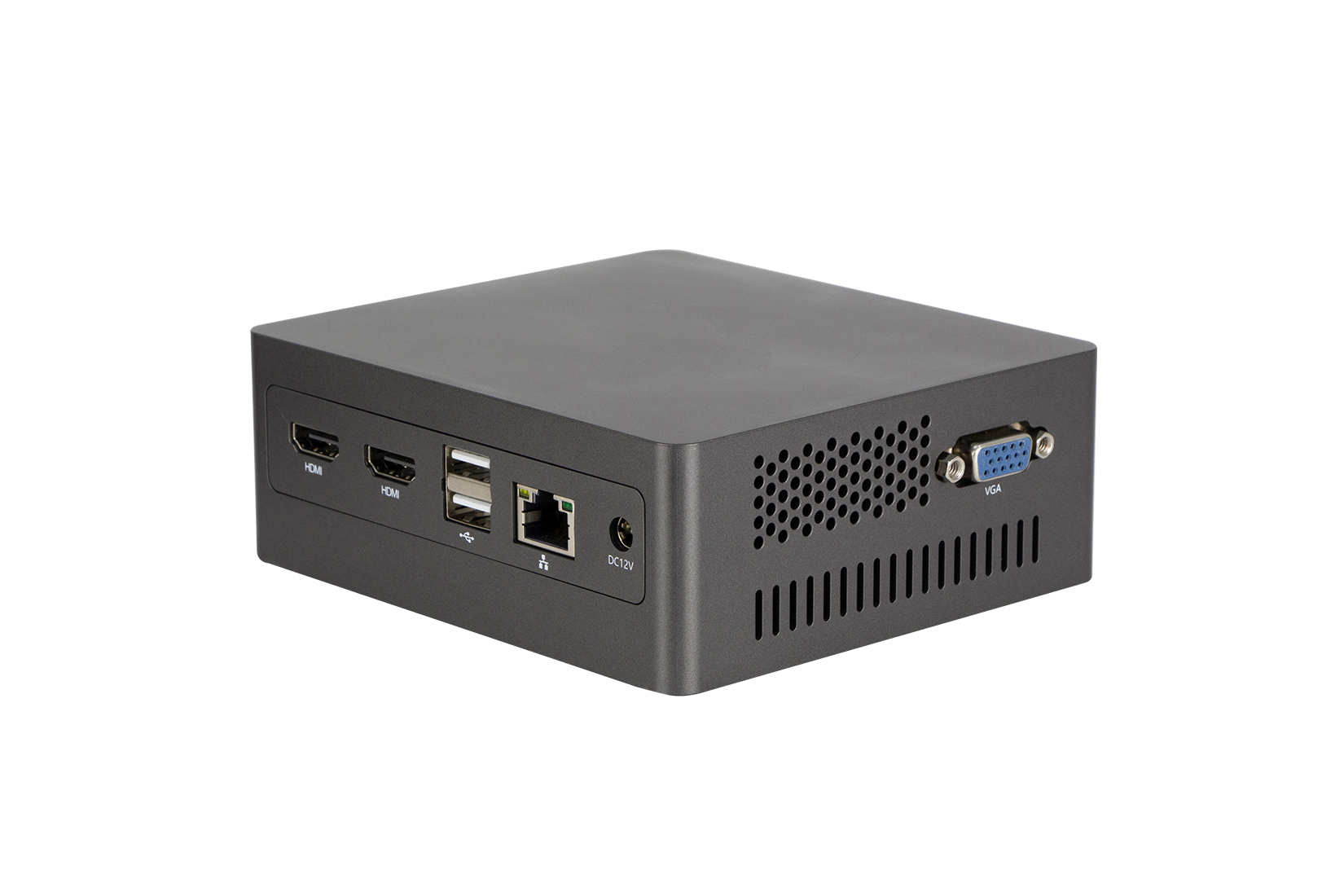

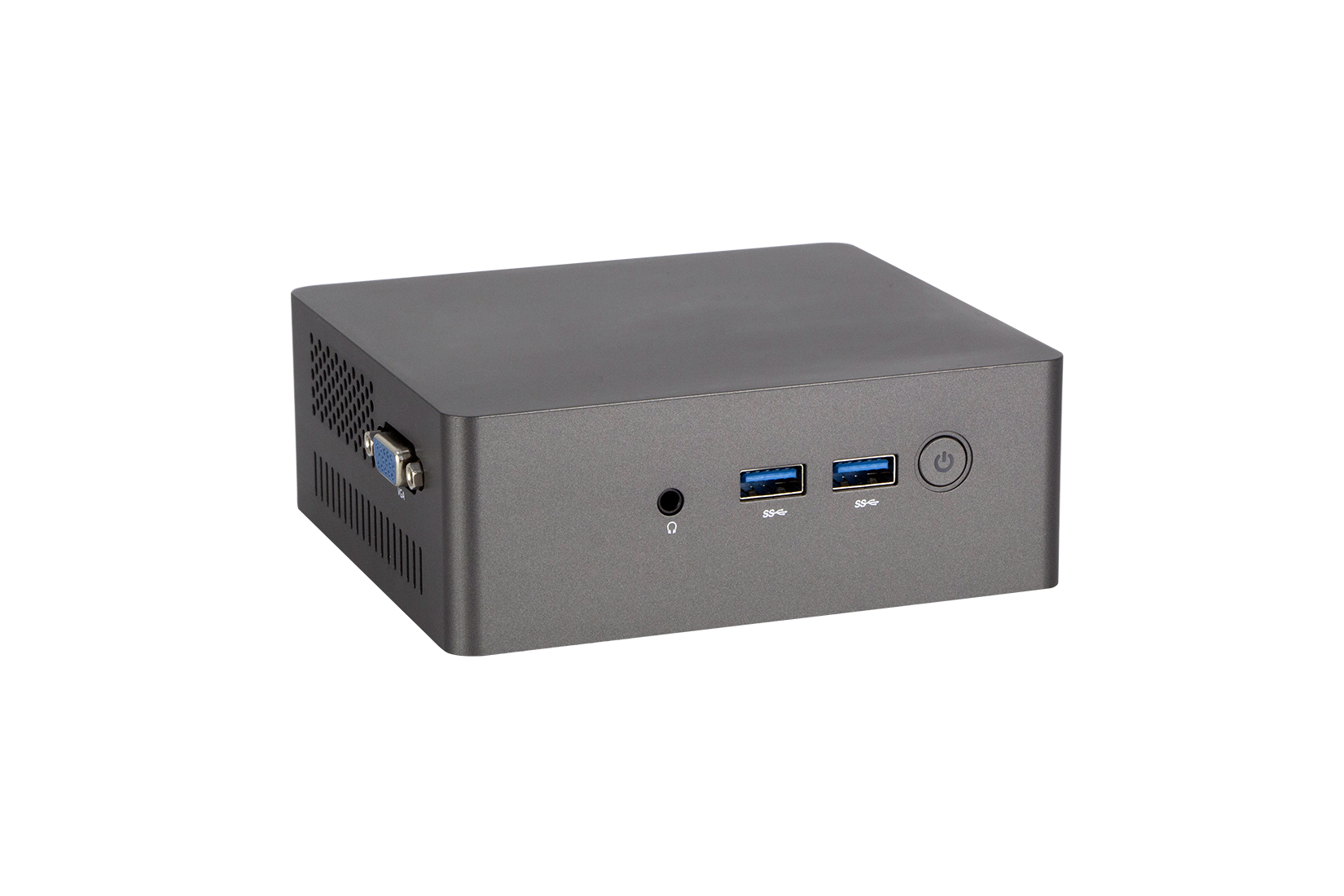

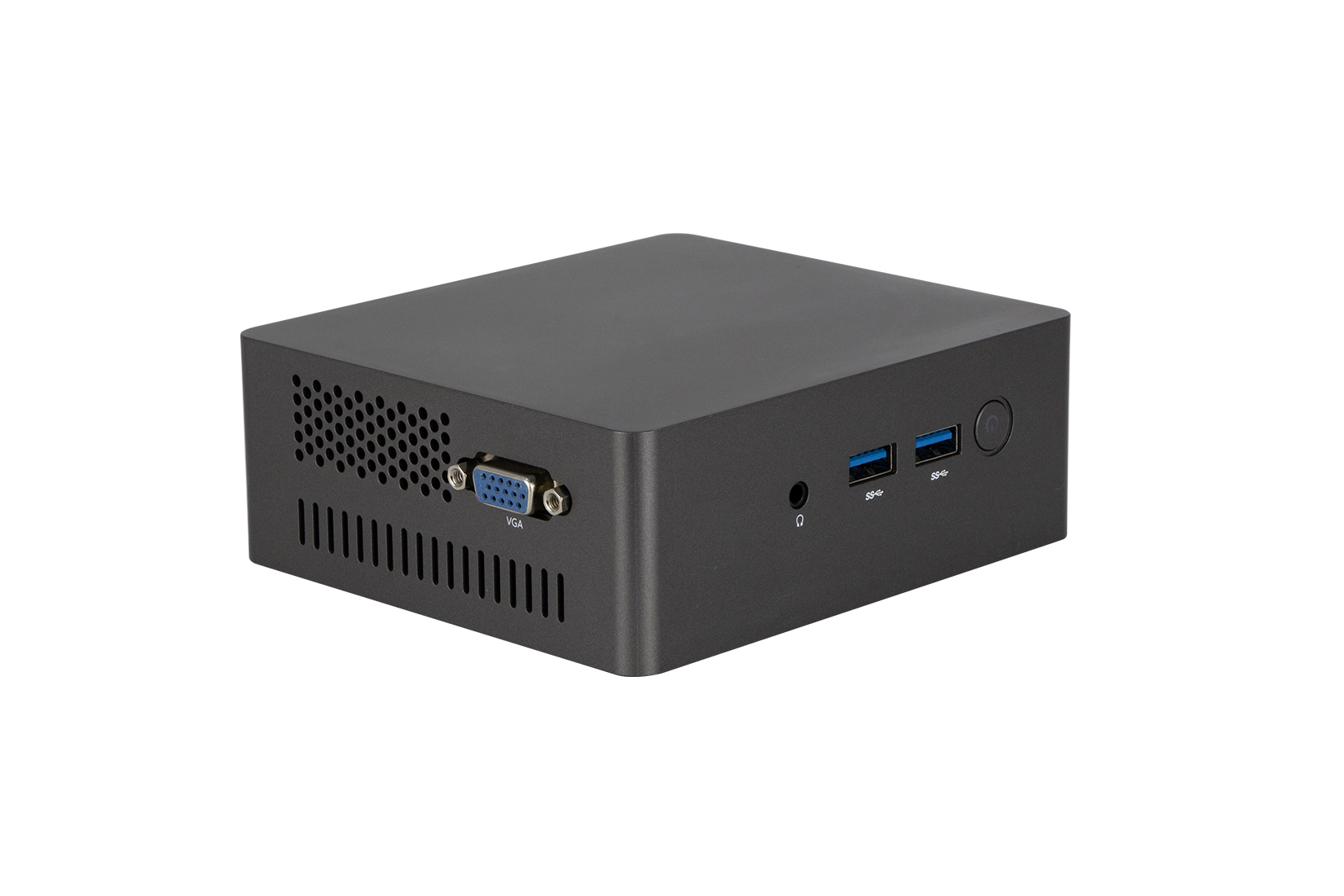

Mini PC with Gemini Lake Refresh & 2T & 5USB

详细参数

Form Factor                  Mini PC

Dimension                    125mm*112mm*43mm

Weight(g)                     TBD

Material                        Plastic

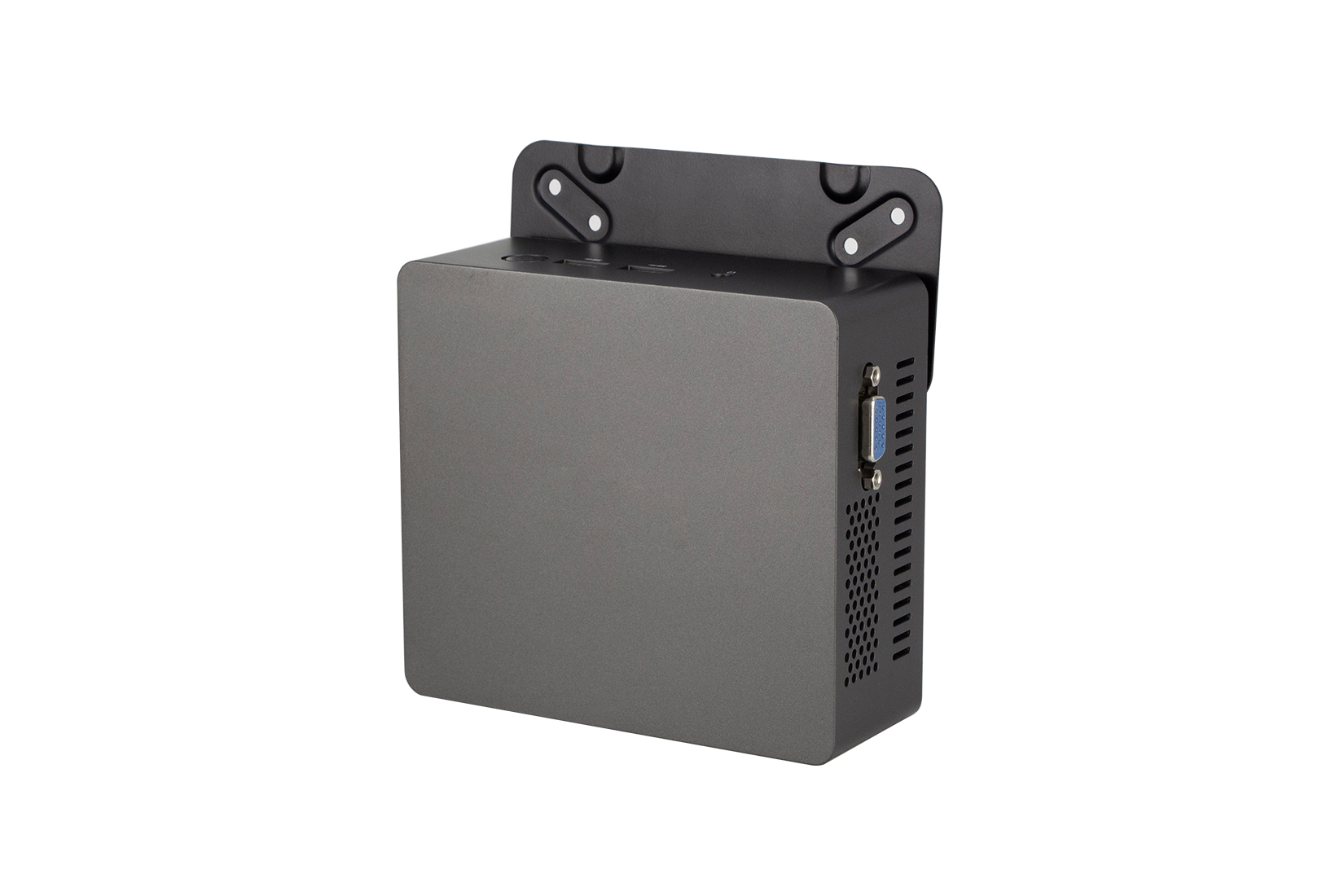

VESA                             Support

CPU                               Intel® Gemini Lake Refresh N4020/J4125

                                      4 Cores (4C/4T)
                                      BGA size :35mm*24mm

                                     10nm, 10-15W, Supports 4MB L3 Cache

Memory                        LPDDR4X 4GB/8GB/16GB

Storage                          eMMC 32G/64G/128G

                                      SSD(Option) 128G/125G/512G; 22mm*80mm, sata3.0 or pcie*4

                                      HDD(Option) 2.5inch 500GB/1T/2T

WIFI/Bluetooth             Intel AC WIFI or AX201

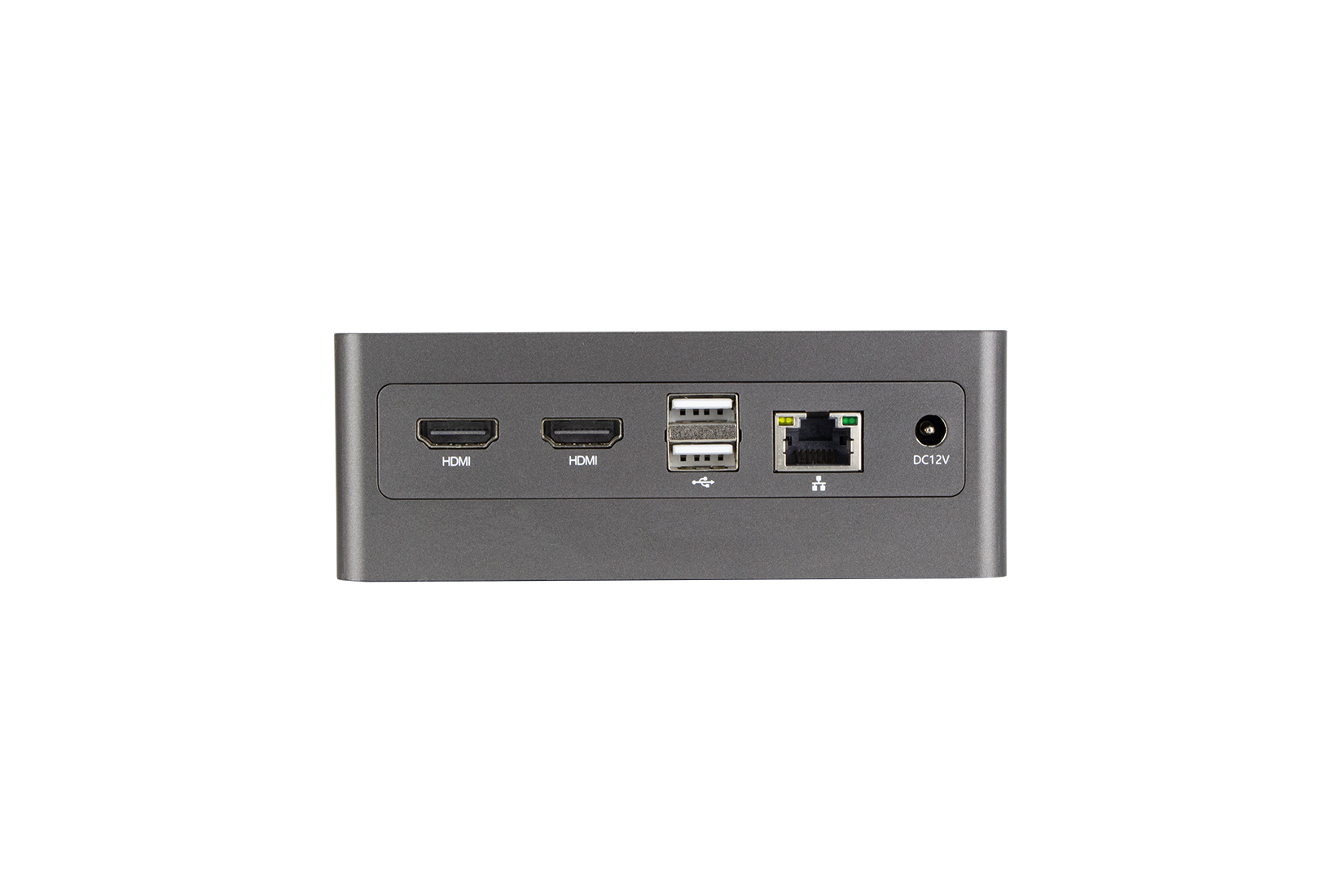

I/O                                 USB 2.0*2 Type-A

                                      USB 3.1*2 Type-A

                                      HDMI®*2, standard, hdmi out

                                      LAN(RJ45)*1 10M/100M/1000M

                                      Type-C*1, Full-function type  or  data only

                                      Power Button*1

                                      DC IN*1,₵5.0mm

Audio                            Audio Jack*1

Hot Keys                        Power Button *1

                                      Reset Button *1

Power                            AC adapter  100~240V, 50/60Hz, 12V/6A

Battery                           RTC 2032

Sofrware                        Support OS  Windows 11/Linux
