Product Form Form Factor Landscape
Dimension(L x W x H) 526mm*372.3mm*60.5mm
Weight(g) 4kg
CPU Dual-cortex A72, Quad cortex A53, 64bit, up to 2.0GHz, Mali-T860 MP4 GPU
With watchdog timer function
OS Android 11 Enterprise
UI Google UI
Audio MP3, MP2, AMR, AWB, APR, M4A, MIDI, OGG, OGA, WAV, FLAC, 3GP
Video Mpeg1, Mpeg2, Mpeg4, H.263, H.264
RAM LPDDR4 4G
ROM MLC NAND 32GB
External Storage up to 256GB
Screen 21.5 inch
Resolution FHD IPS 1920x1080
about 200cd/m2
with LED backlight
TP G+G, 10 points touch, White Capacitive Touch
Housing Metal and Plastic
Sensor Ambient light sensor on the camera
G-sensor option(V2)
WIFI support 2.4GHz and 5GHz WIFI
Bluetooth BT 4.1
RFID Double frequency 125KHz and 13.56Mhz
Provide by customer
RFID Silk printing
Connector Audio Headset Connector
Ethernet RJ45

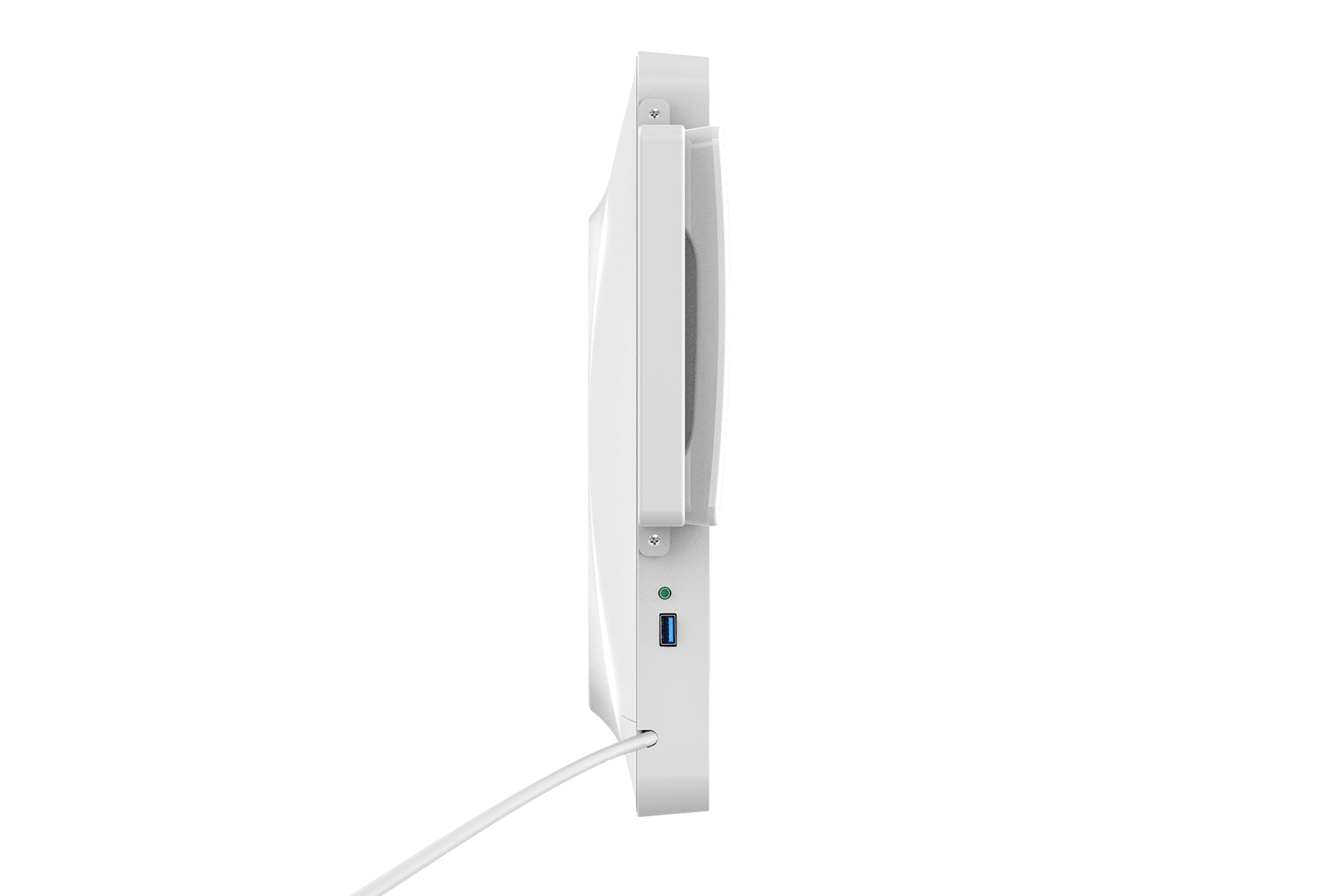

USB 3.0 Port x2
USB 2.0 Port x2
USB 2.0 Port x1
SD Card Slot x1, Micro SD card up to 256GB
Earphone port x1, CTIA standards,3.5MM Audio Port
DC adapter: 1.5M, Medical Grade DC Block to Screw terminal
3 types AC connector(3M): US / EU / AU
Pass the UL60601 certificate
Audio DMIC*1 on camera
Speakers batter than 4R/2W*2pcs
support headset

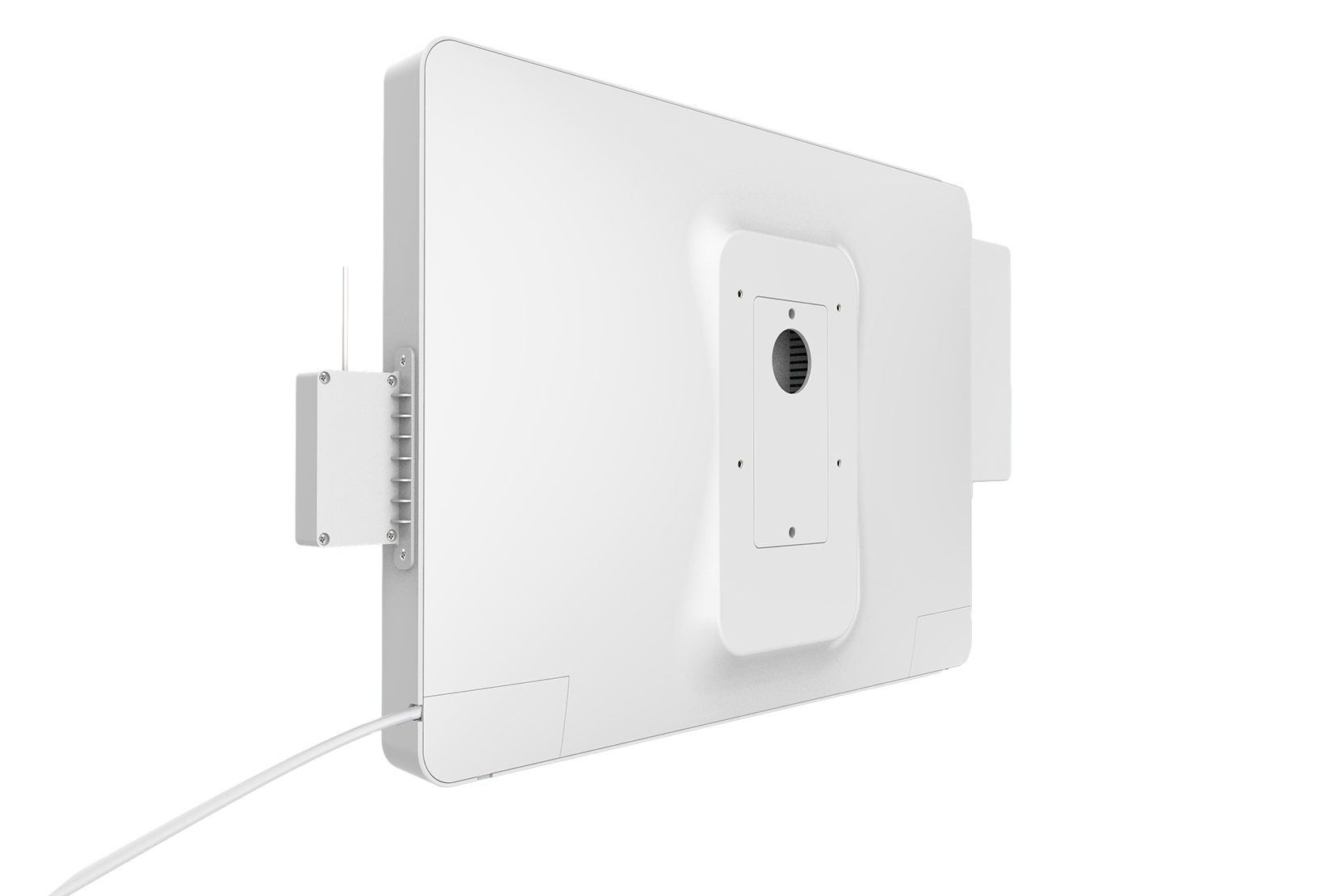

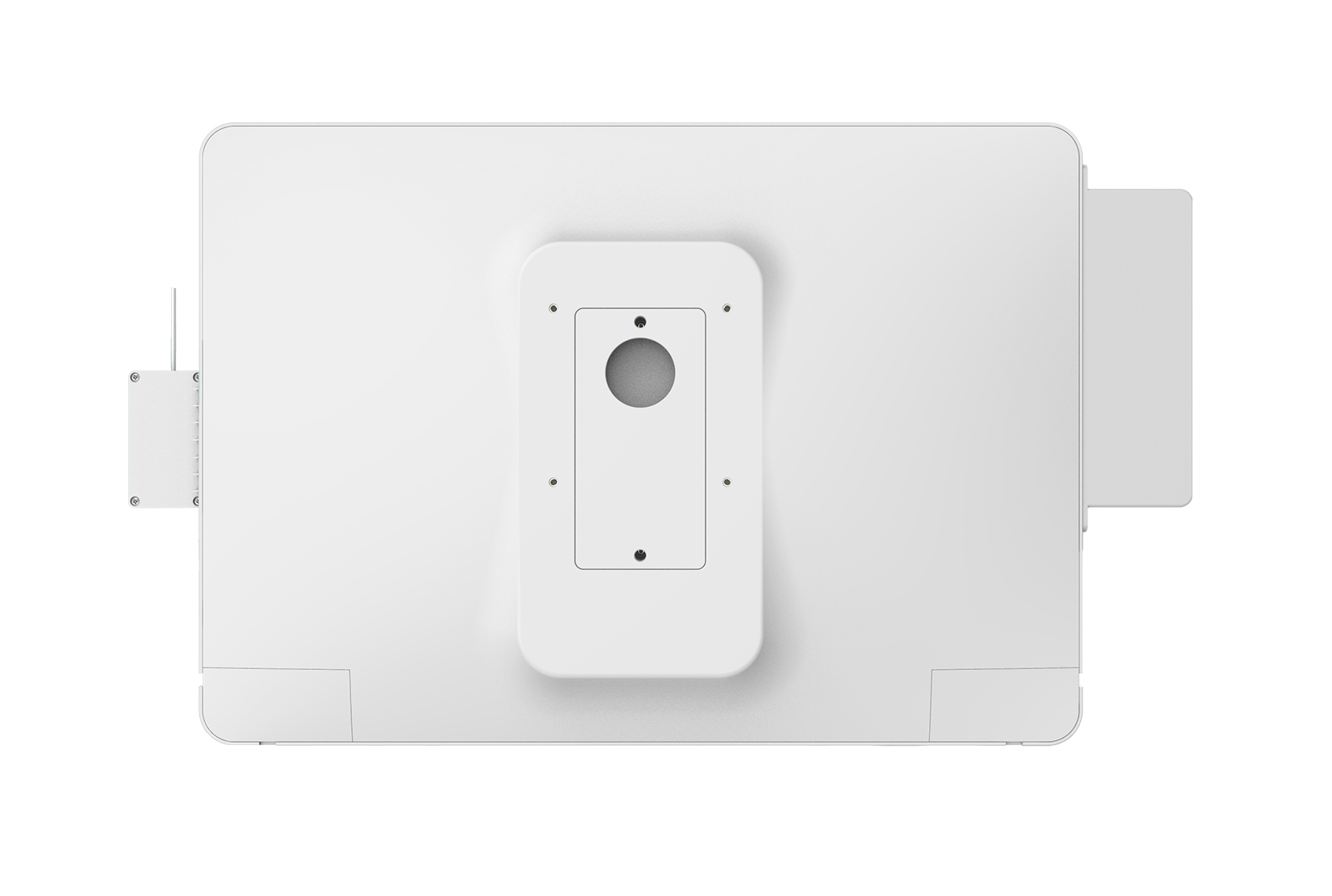

VESA-mountable 10*10cm, Not include VESA stand
Cable type A to Type A, 1.0m for data transmisstion
Certification GMS/FCC/CEC/DOE/Bluetooth/UL 60601-1/Additional Certifications
