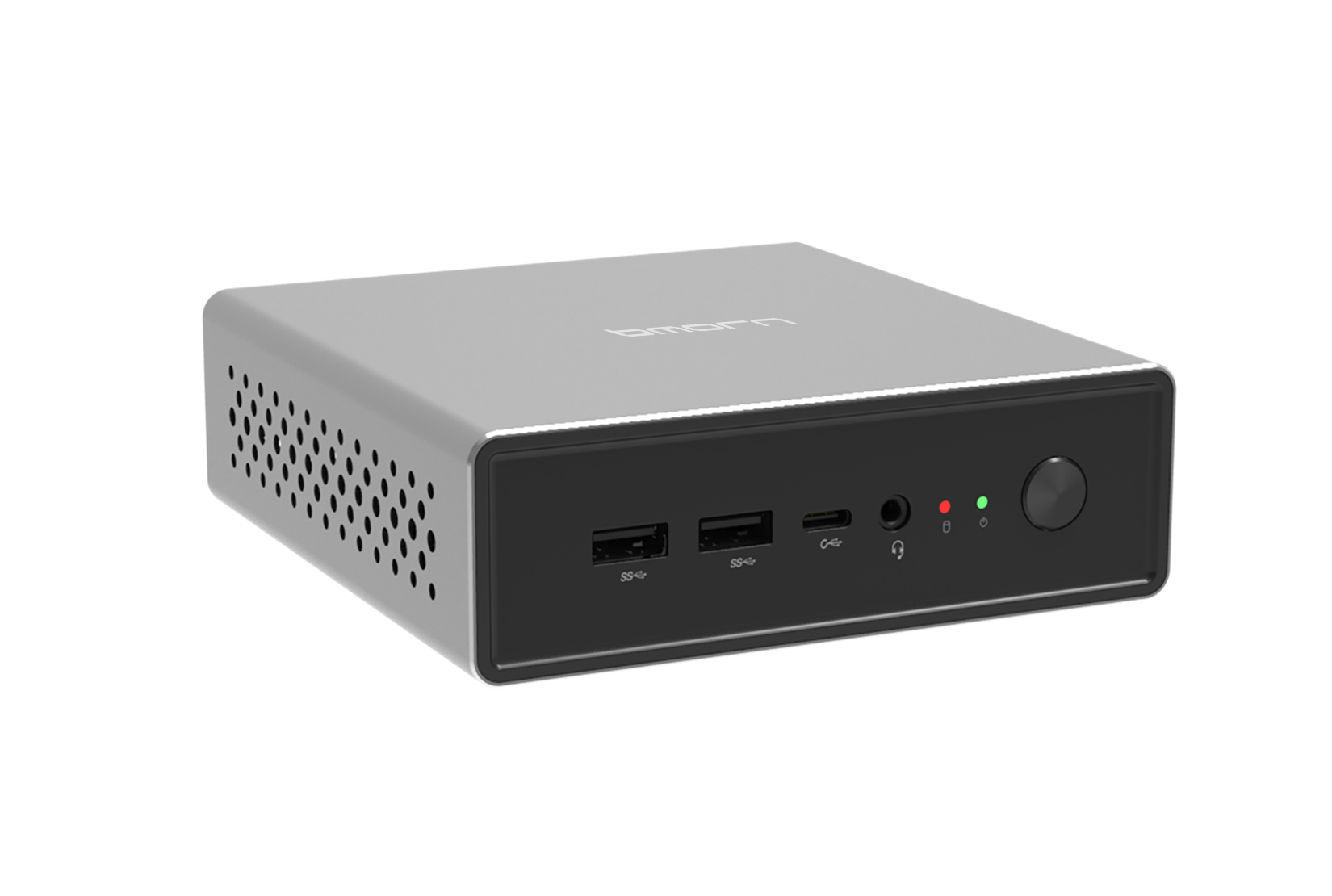

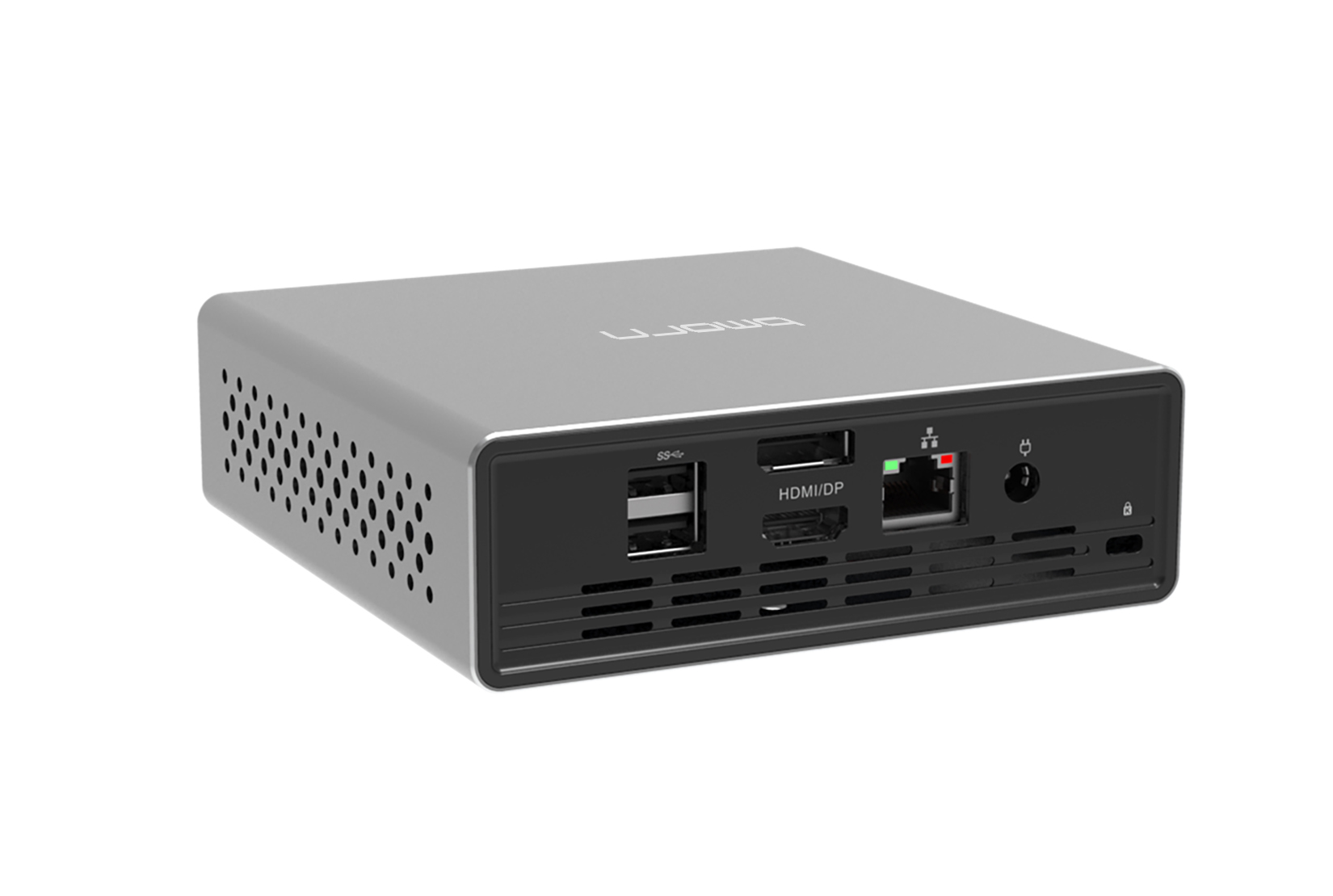

M5

  • Ports: 3x Display, Full-Function Type-C

  • Design: Tool-free Drawer with Rubber Screws

详细参数

CPU                                 ① Intel Jasper Lake
                                        ② Intel Alder Lake-U/P
                                        ③ Intel Alder Lake-N
                                        ④ Intel Meteor Lake-U/H

Memory                          2* SO-DIMM DDR4  or DDR5 based on CPU
Storage                           EMMC: 32GB/64GB/128GB
                                        SSD: 2280 SATA 3.0 or PCIE 3*4  or PCIE4*4
                                        HDD: option support
WIFI                                 IEEE 802.11 b/g/n or ac, or WIFI 6

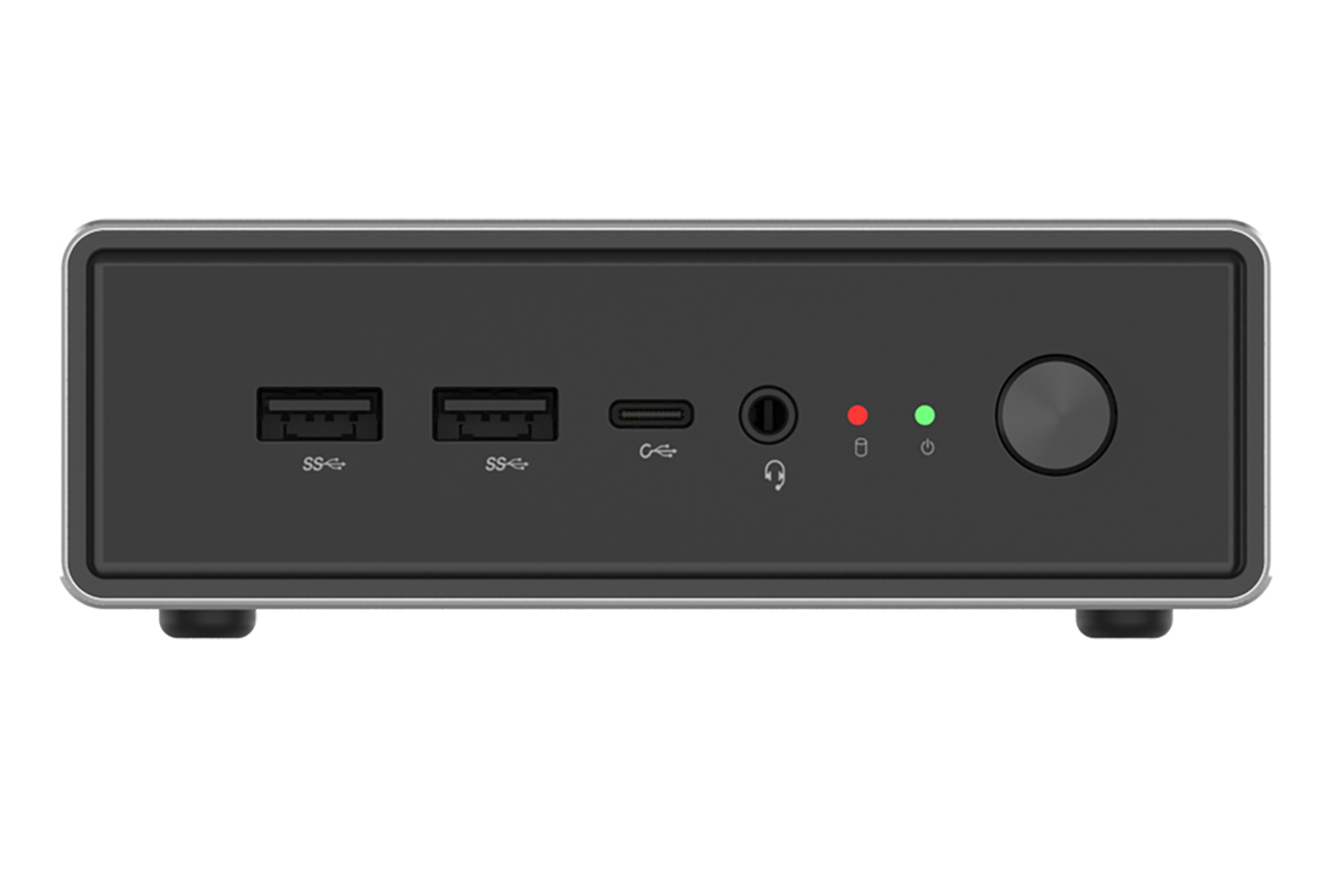

I/O                                   2* USB3.2 Gen1 Type A
                                        1* Type-C
                                        1* Earphone Jack
                                        1* Power button
                                        2* USB2.0 Type A
                                        1* DC-IN Jack 5.5mm
                                        1* HDMI out
                                        1* DP out
                                        1* LAN(RJ45)
                                        1* VGA (option)

Material                          Metal
Dimension                      127*127*44mm
System                            Windows 11, Linux
